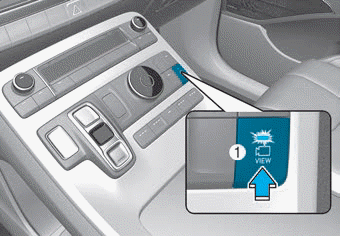

Hyundai Palisade: система помощи водителю/мониторинг кругового обзора

Монитор заднего вида

Монитор заднего вида активируется при работающем двигателе и кнопка переключения передач находится в положении R (задний ход) позиция. Это дополнительная система, помогает обеспечить обзор области позади автомобиля через информационно-развлекательную систему системный экран во время автомобиль находится в положении R (задний ход)...

Система мониторинга слепых зон

■ Тип Б ■ Тип C — со стороны водителя ■ Тип C — со стороны пассажира Система BVM (монитор слепых зон) отображает со стороны водителя или пассажира- боковые тыловые области в кластере при включении системы...
